Aluminum shell forming equipment for capacitor
Details：

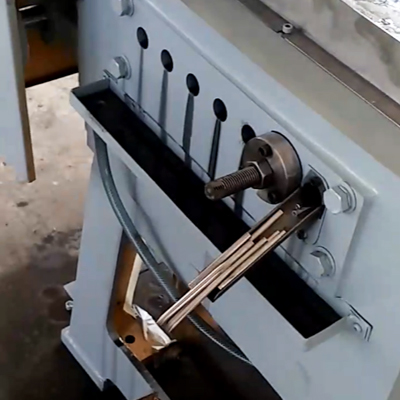

Row punch press
Metal shell punch press（5 columns）model parameters
Special equipment for processing metal tube shell，Press for making metal cap into tube shell，Single or continuous stamping mode can be set，Just move the connecting rod.Compact structure, simple operation and high efficiency.
|
product model parameters
|
Nominal pressure （ＫＮ） |
Slide stroke （ＭＭ） |
punching times ／minute
|
Maximum length of punching pipe （ＭＭ）
|
Motor power (ＫＷ)
|
External dimension (ＭＭ)
|
Weight （Ton）
|
|---|---|---|---|---|---|---|---|
| 4 columns | 120 | 120 | 60 | 40 | 3 | 1600*800*1000 | 1.3 |
| 5 columns | 160 | 180 | 60 | 68 | 5.5 | 2400*1200*1000 | 1.75 |
| 6 columns | 160 | 200 | 60 | 82 | 5.5 | 2400*1200*1100 | 1.75 |
| 7 columns | 200 | 220 | 50 | 95 | 7.5 | 2500*1252*1100 | 2.3 |
| 10 columns | 200 | 240 | 40 | 102 | 7.5 | 2600*1305*1100 | 2.5 |
|
