Details:

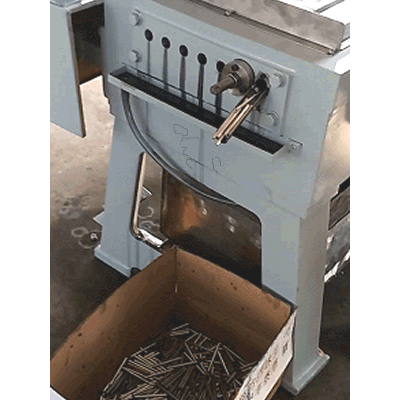

Metal shell punch press(8 columns)(Row punch press )
Row punch press model parameters
product model parameters
|
Nominal pressure (KN) |
Slide stroke (MM) |
punching times /minute |
Maximum length of punching pipe (MM) |
Motor power (KW) |
External dimension (MM) |
Weight (Ton) |
---|---|---|---|---|---|---|---|
4 columns | 120 | 120 | 60 | 40 | 3 | 1600*800*1000 | 1.3 |
5 columns | 160 | 180 | 60 | 68 | 5.5 | 2400*1200*1000 | 1.75 |
6 columns | 160 | 200 | 60 | 82 | 5.5 | 2400*1200*1100 | 1.75 |
7 columns | 200 | 220 | 50 | 95 | 7.5 | 2500*1252*1100 | 2.3 |
10 columns | 200 | 240 | 40 | 102 | 7.5 | 2600*1305*1100 | 2.5 |
Tel:86 187-4181-1999 Mr. Liu
|
